CENTINELLA
A 49-unit multifamily complex, fully documented. Two buildings, two residential floors, and every unit captured in a complete as-built drawing set.
//
Location
Revit, AutoCAD, PDF, .e57
//
Category
Commercial
//
Timeline
1 week
// Project Scope
Two three-story residential buildings connected by bridge walkways, comprising 49 one-bedroom units across the 2nd and 3rd floors. Full field verification of all unit layouts, common corridors, walkway bridges, and site. Both east and west buildings documented floor by floor.
// Deliverables
Site plan with full unit index

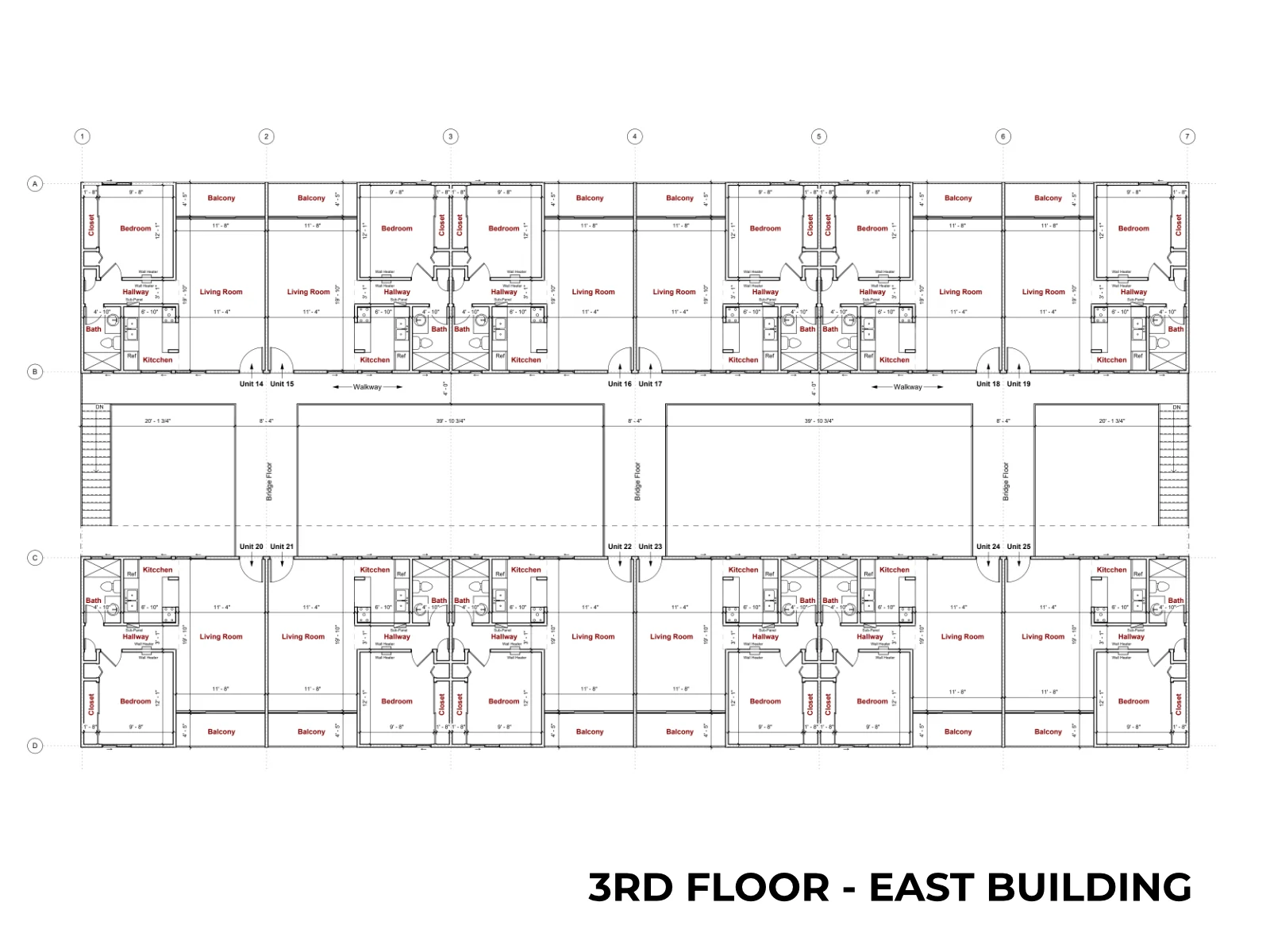

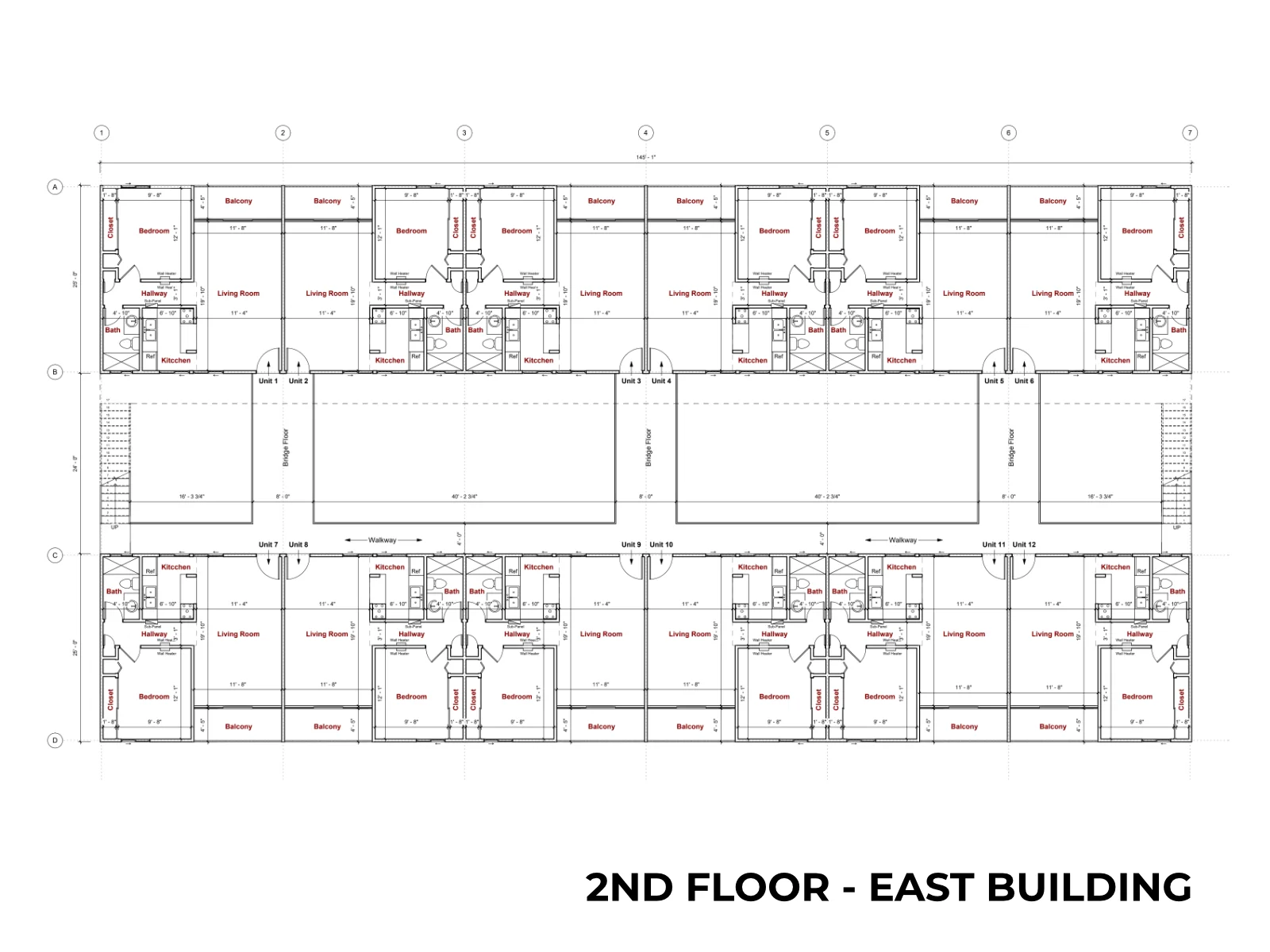

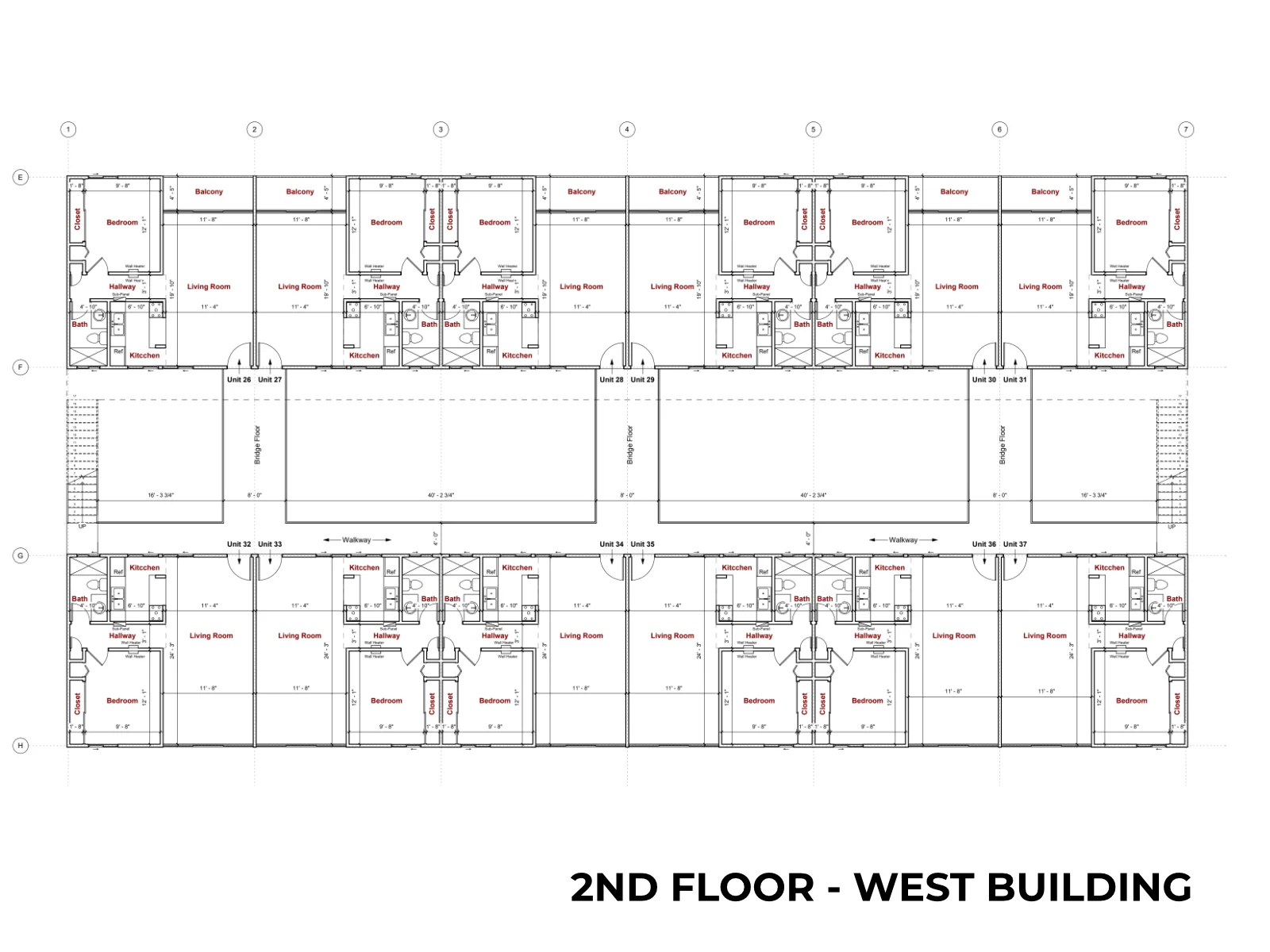

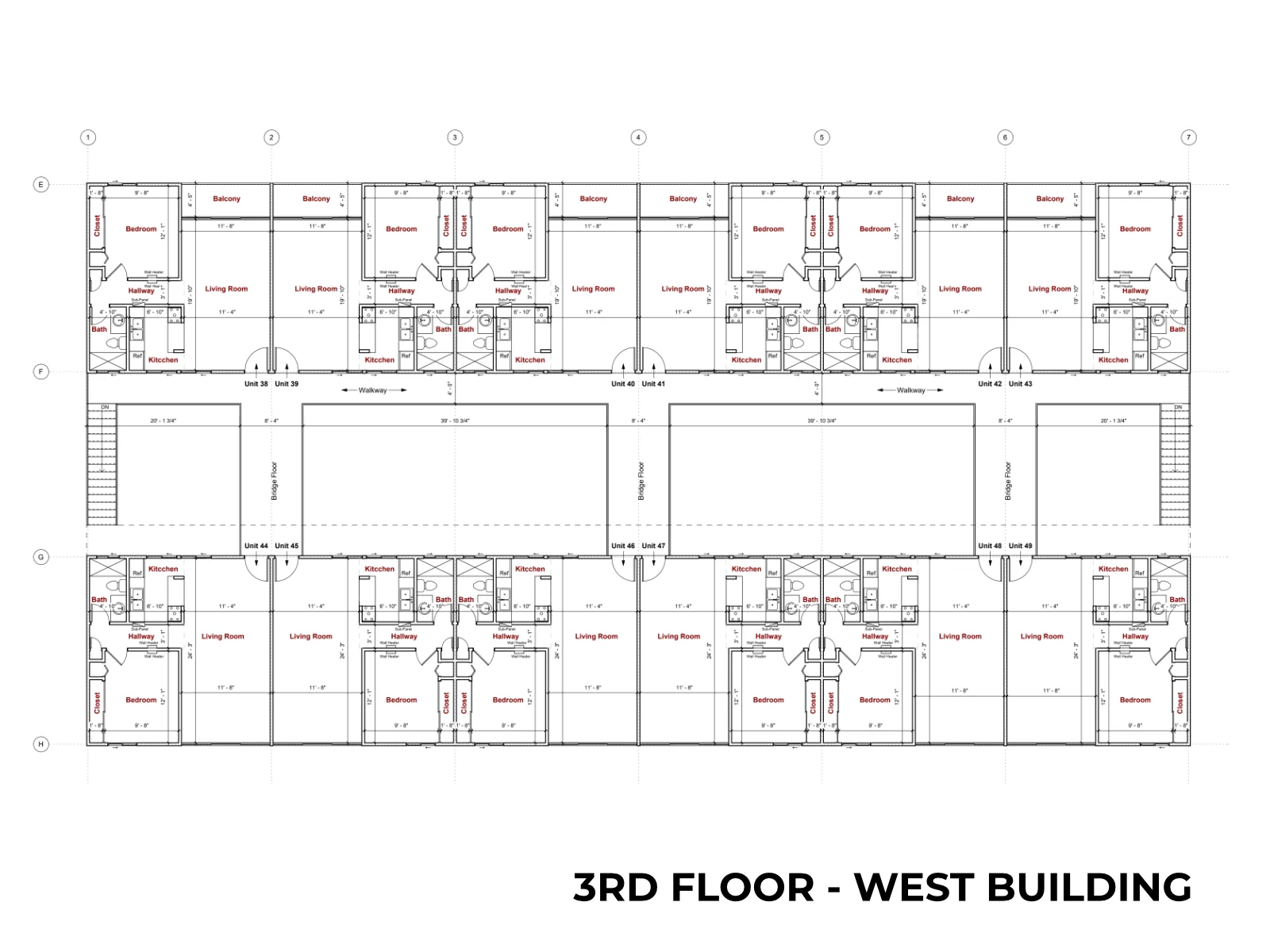

2nd and 3rd floor plans for East and West buildings
Individual unit layouts with dimensions · Bridge walkway and common area documentation
Revit model + PDF set
